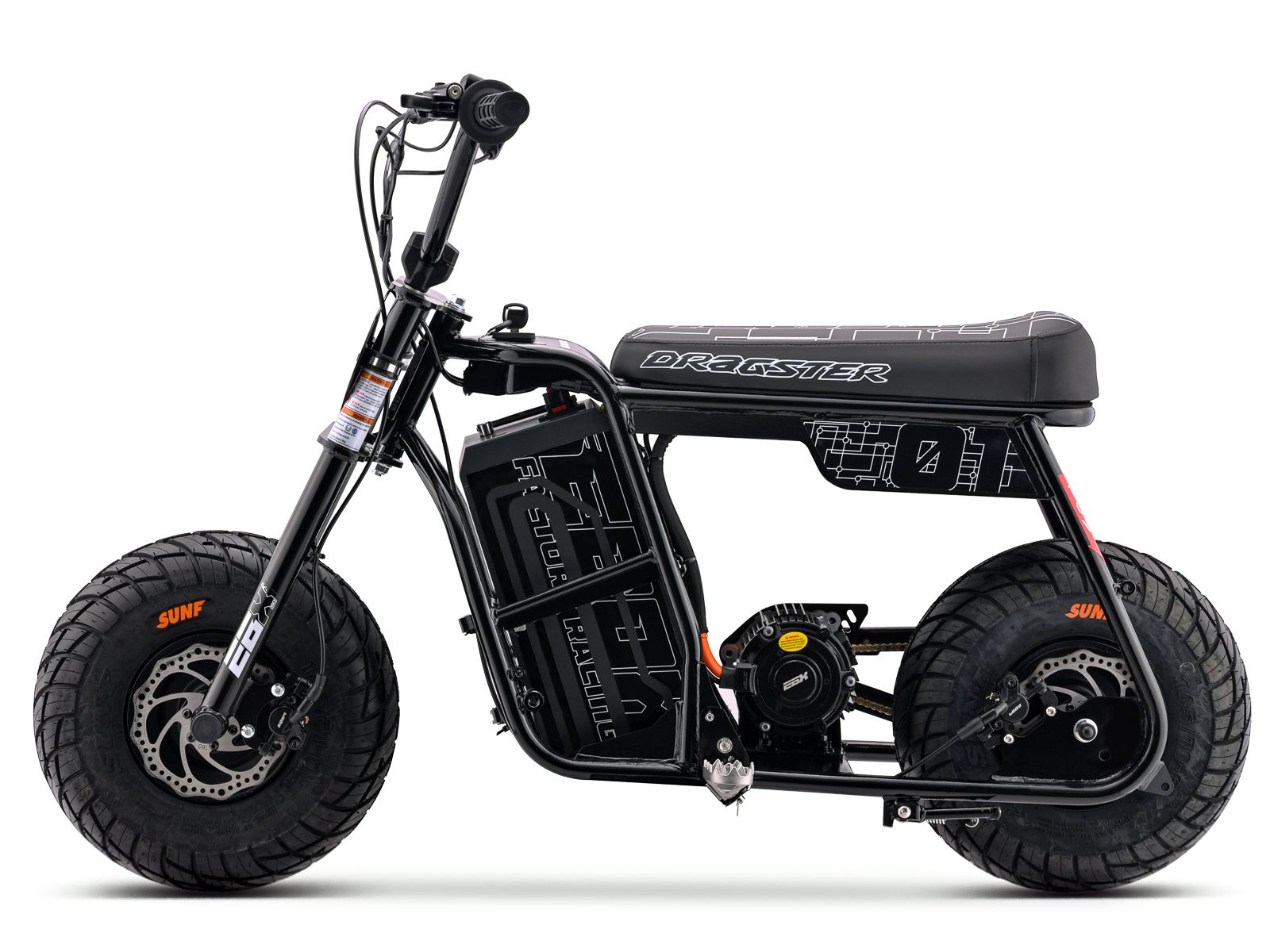

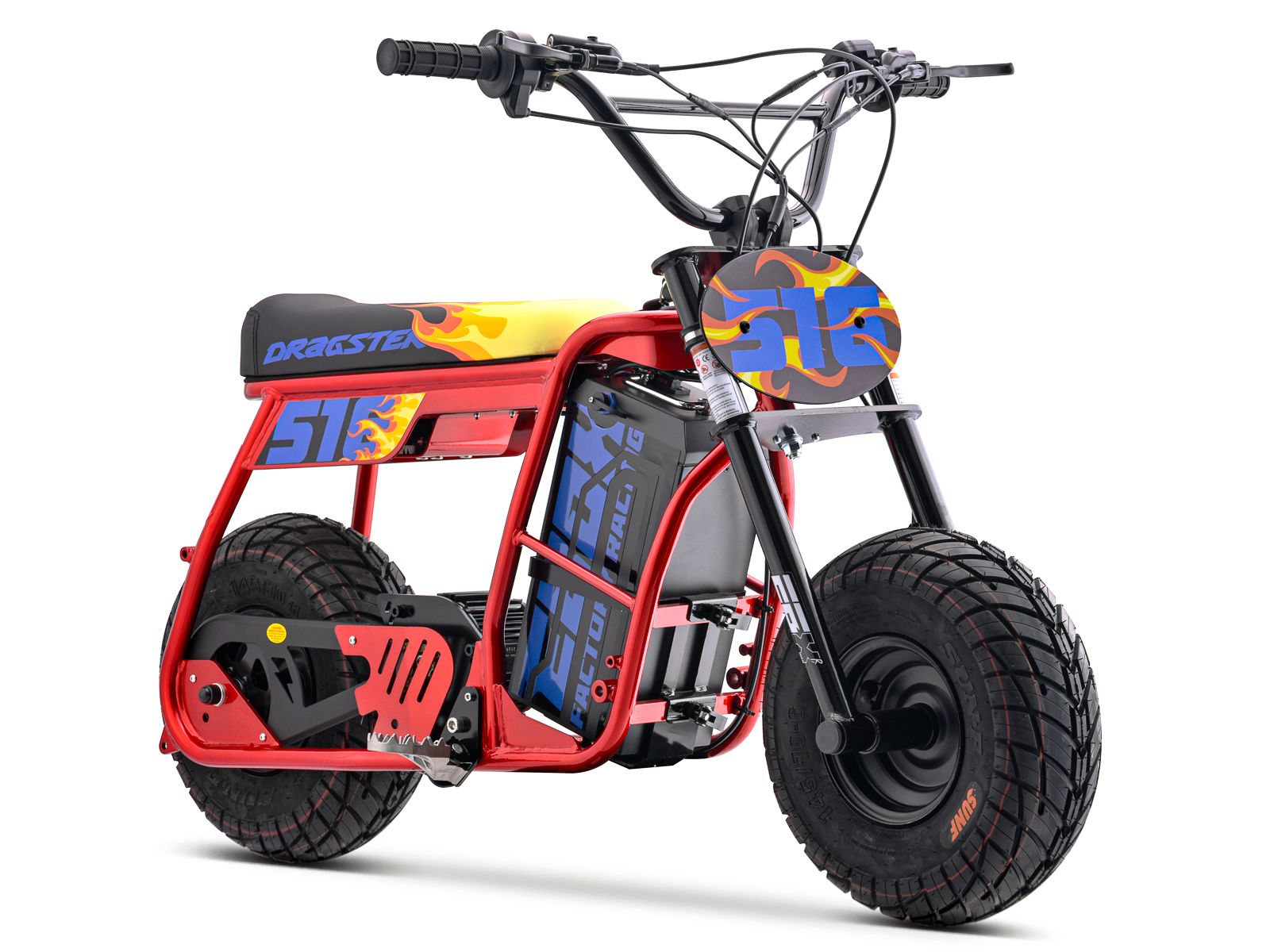

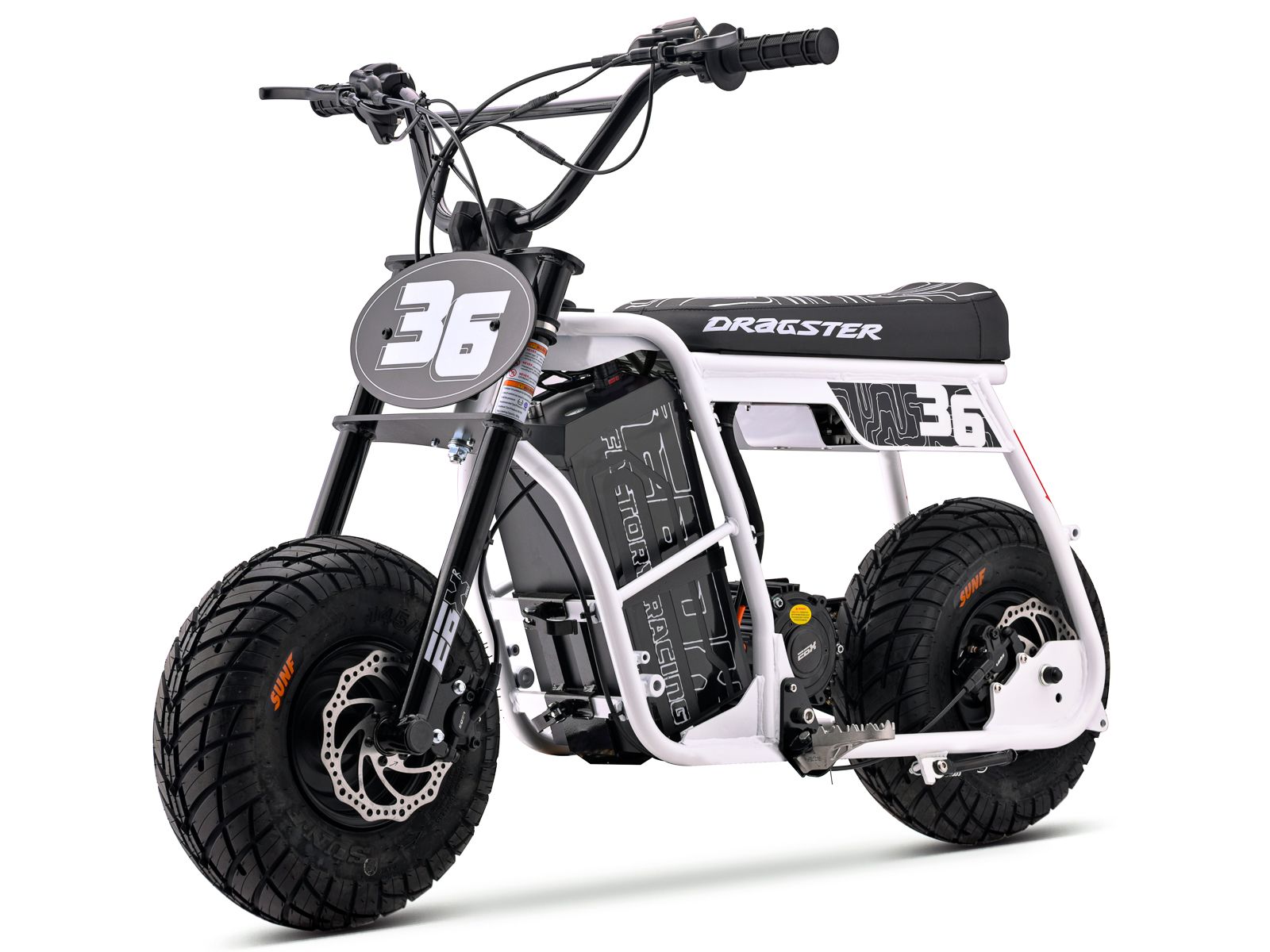

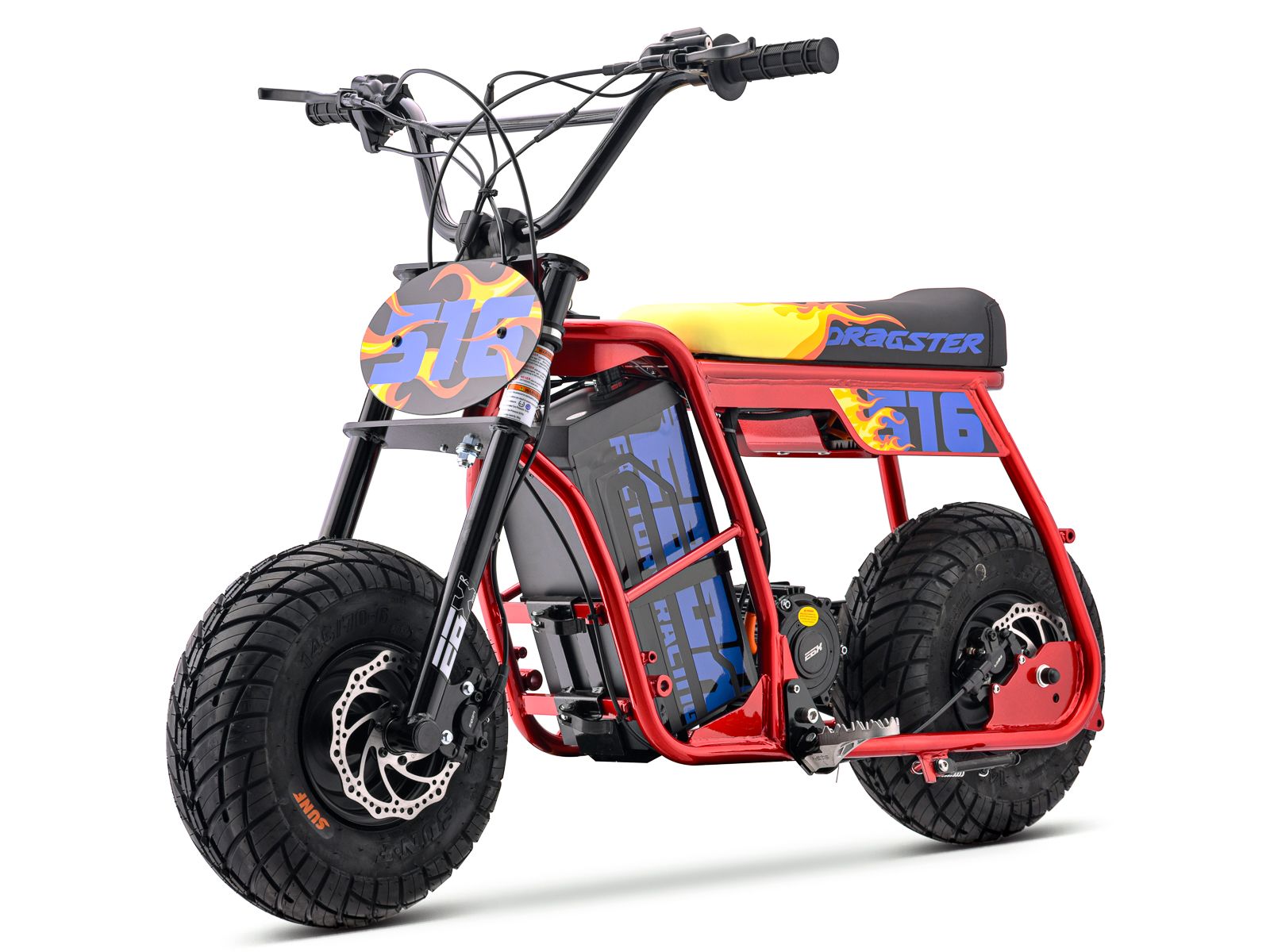

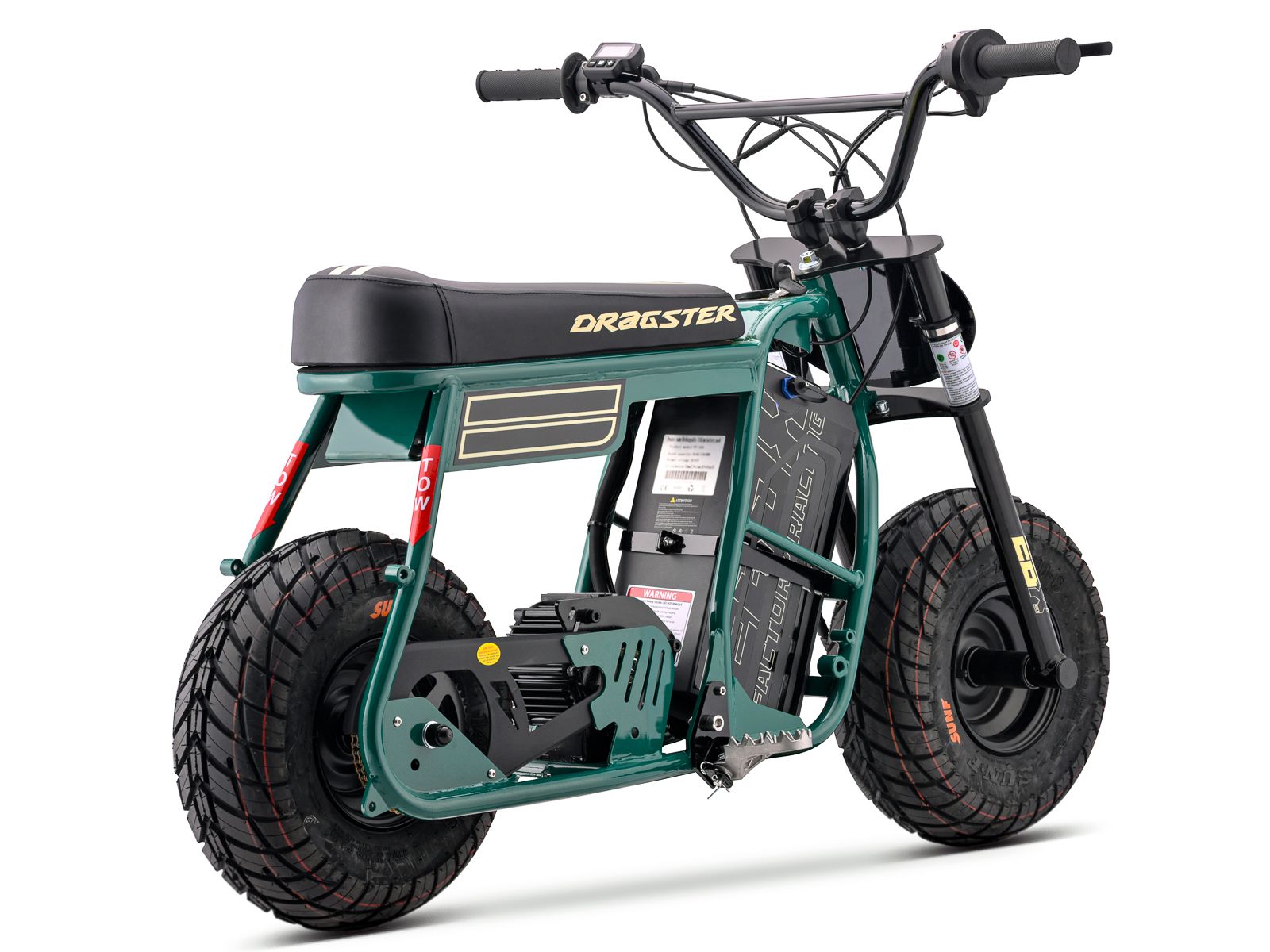

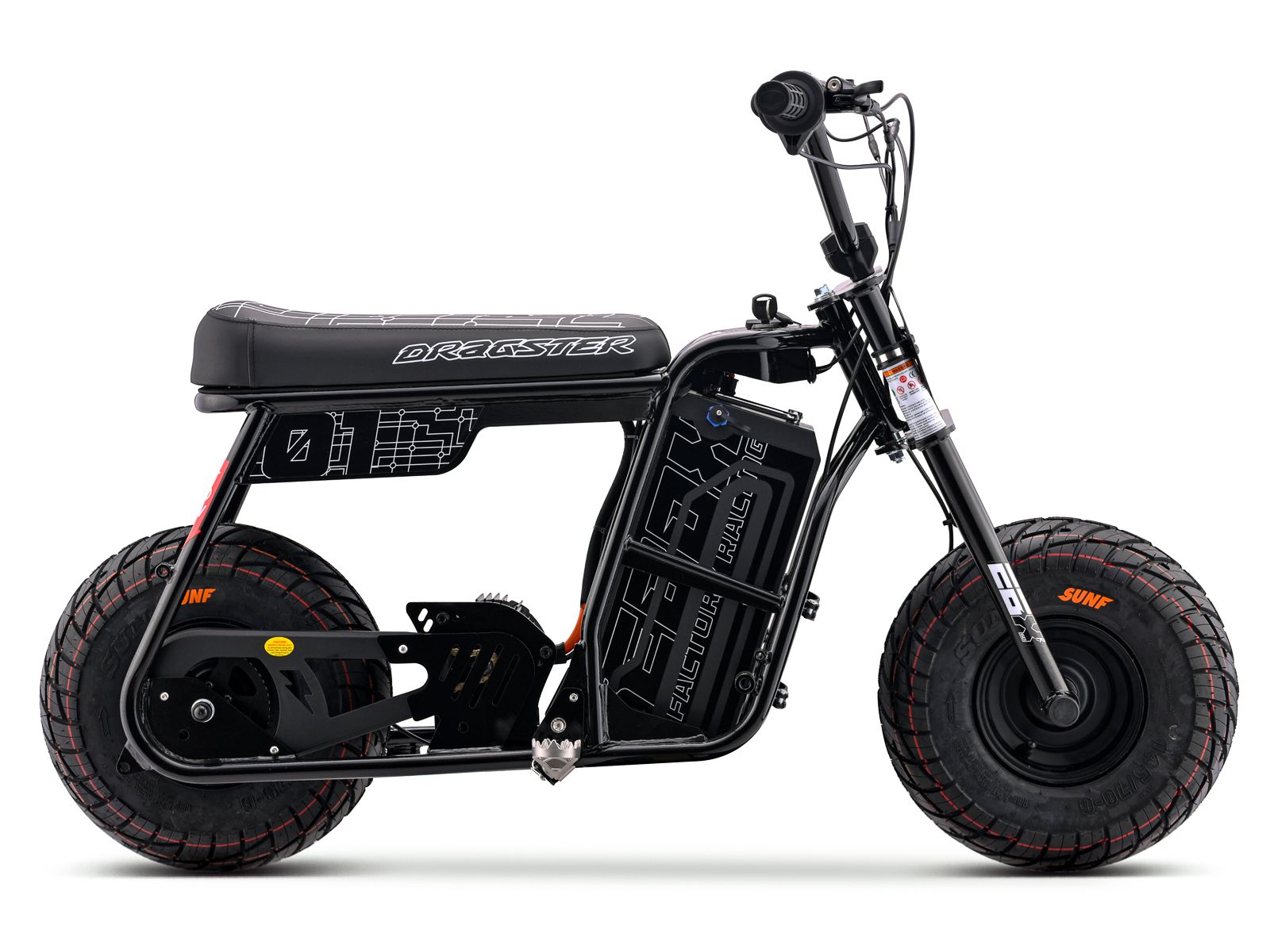

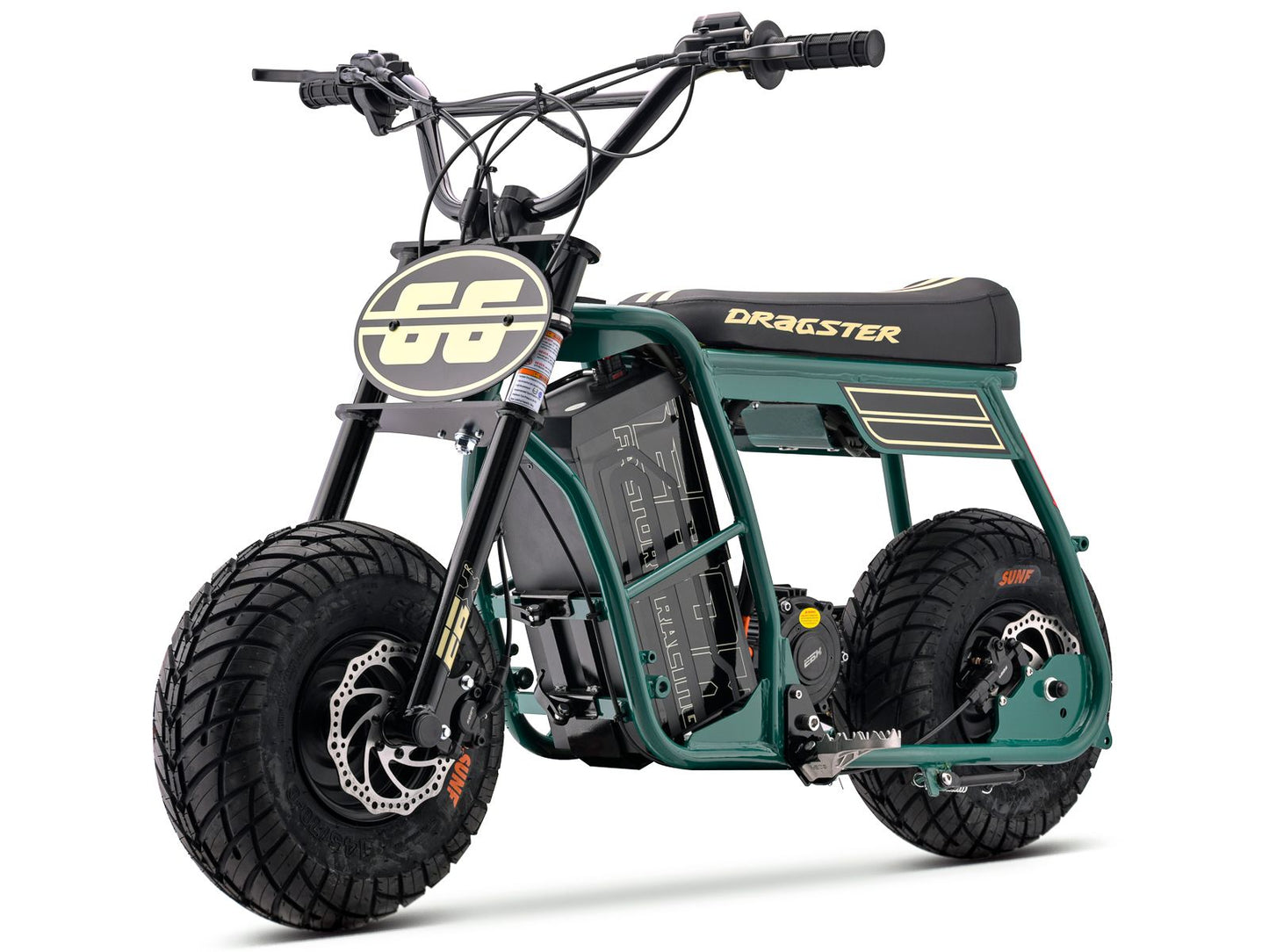

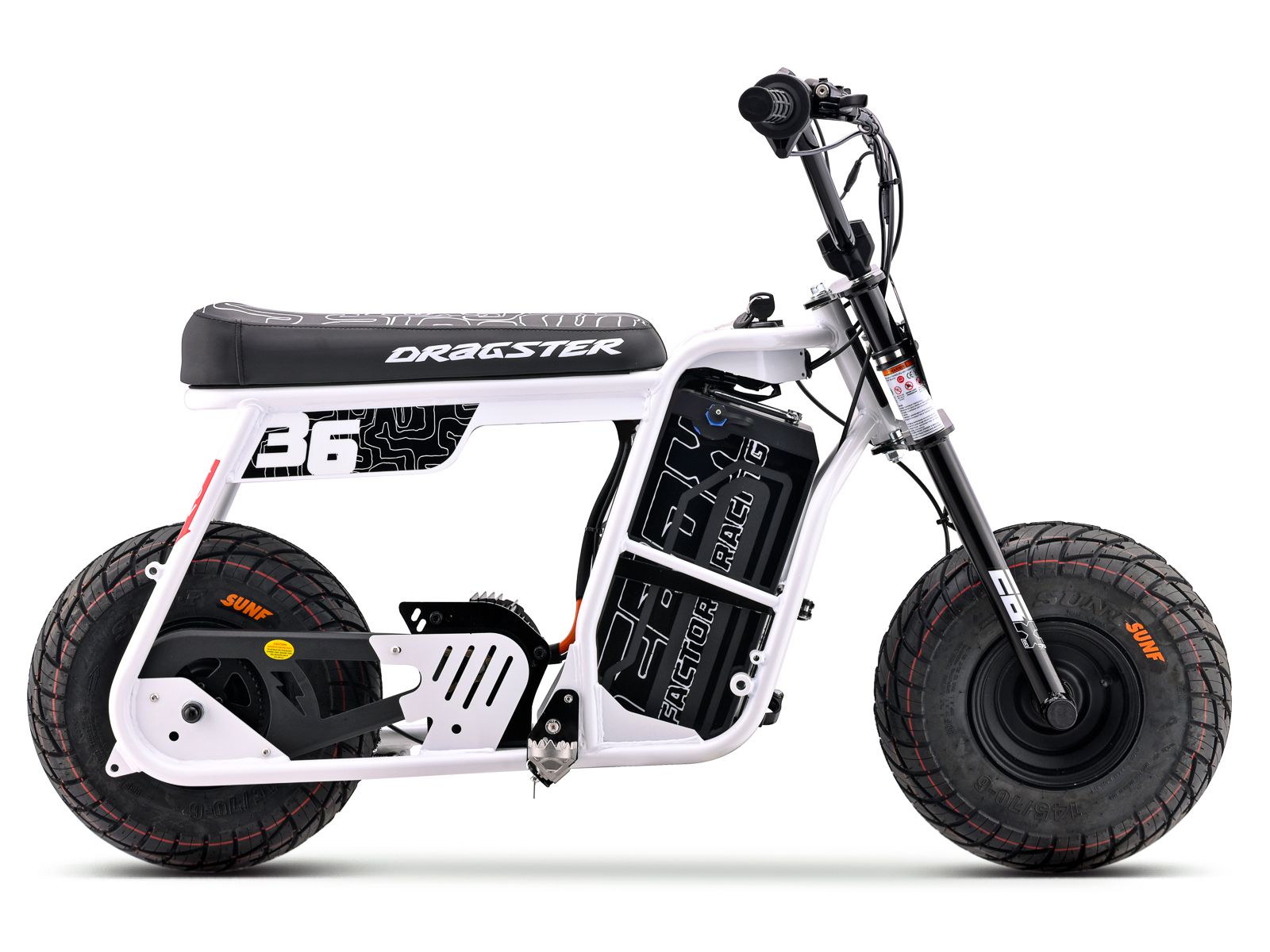

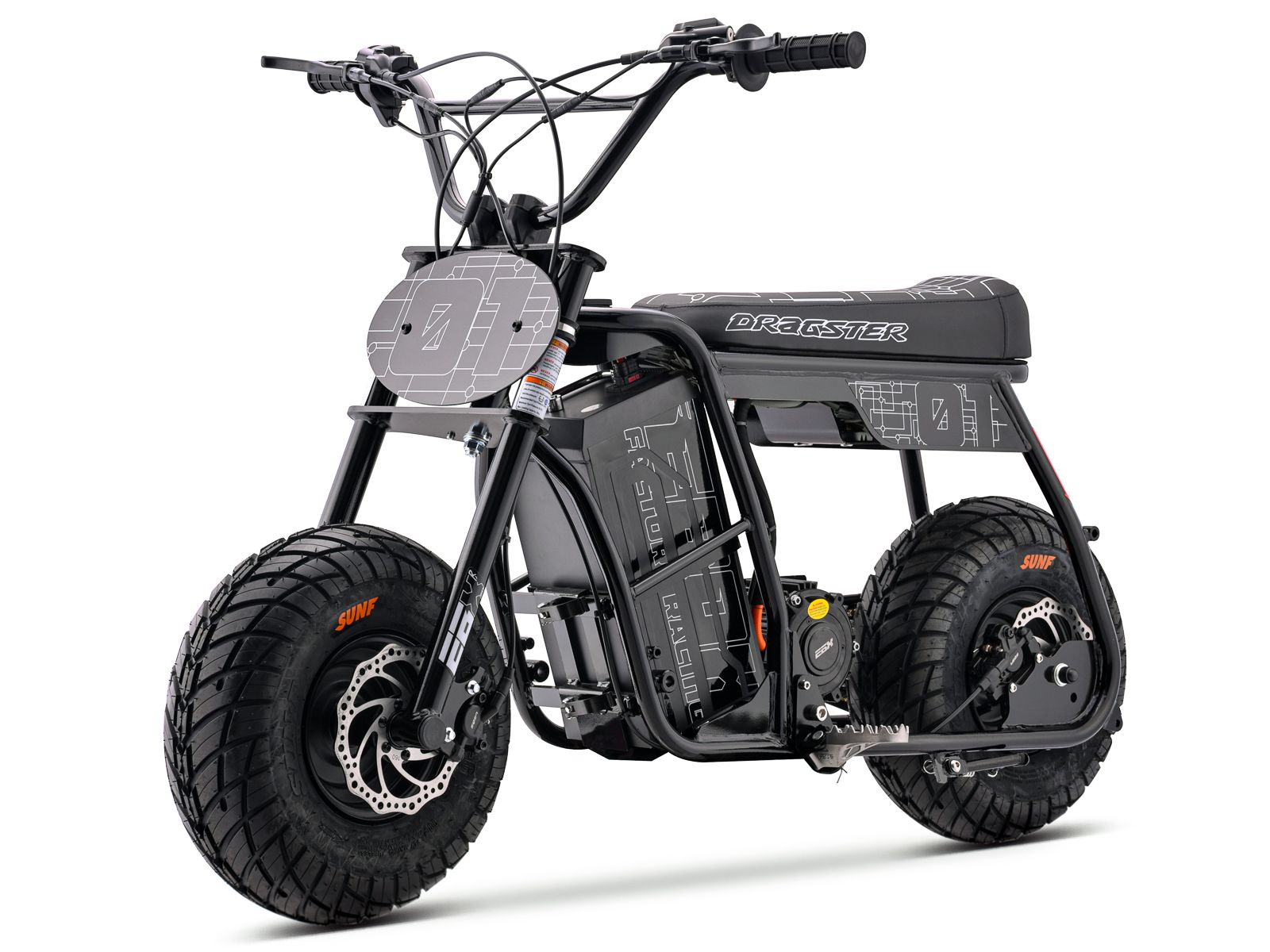

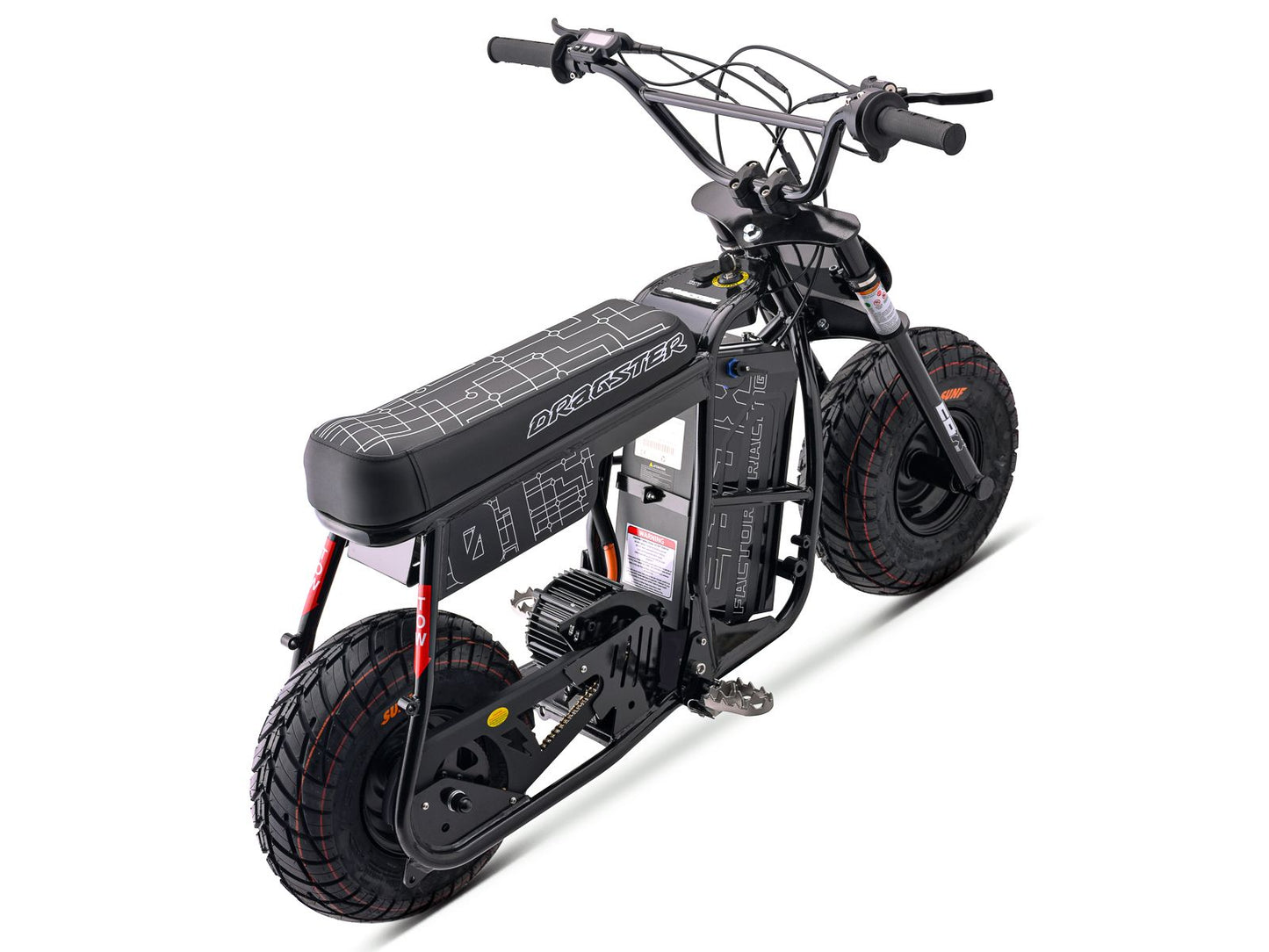

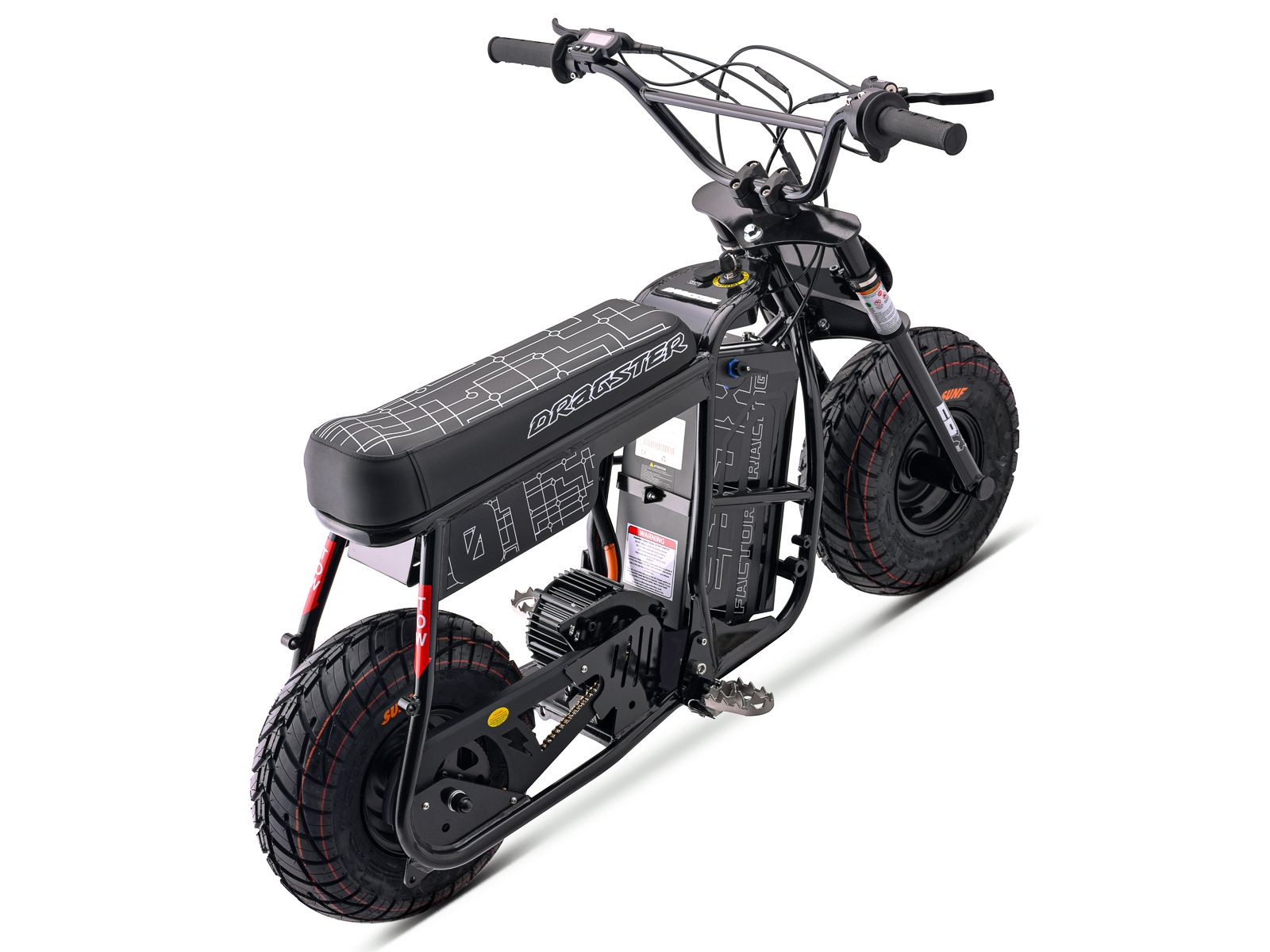

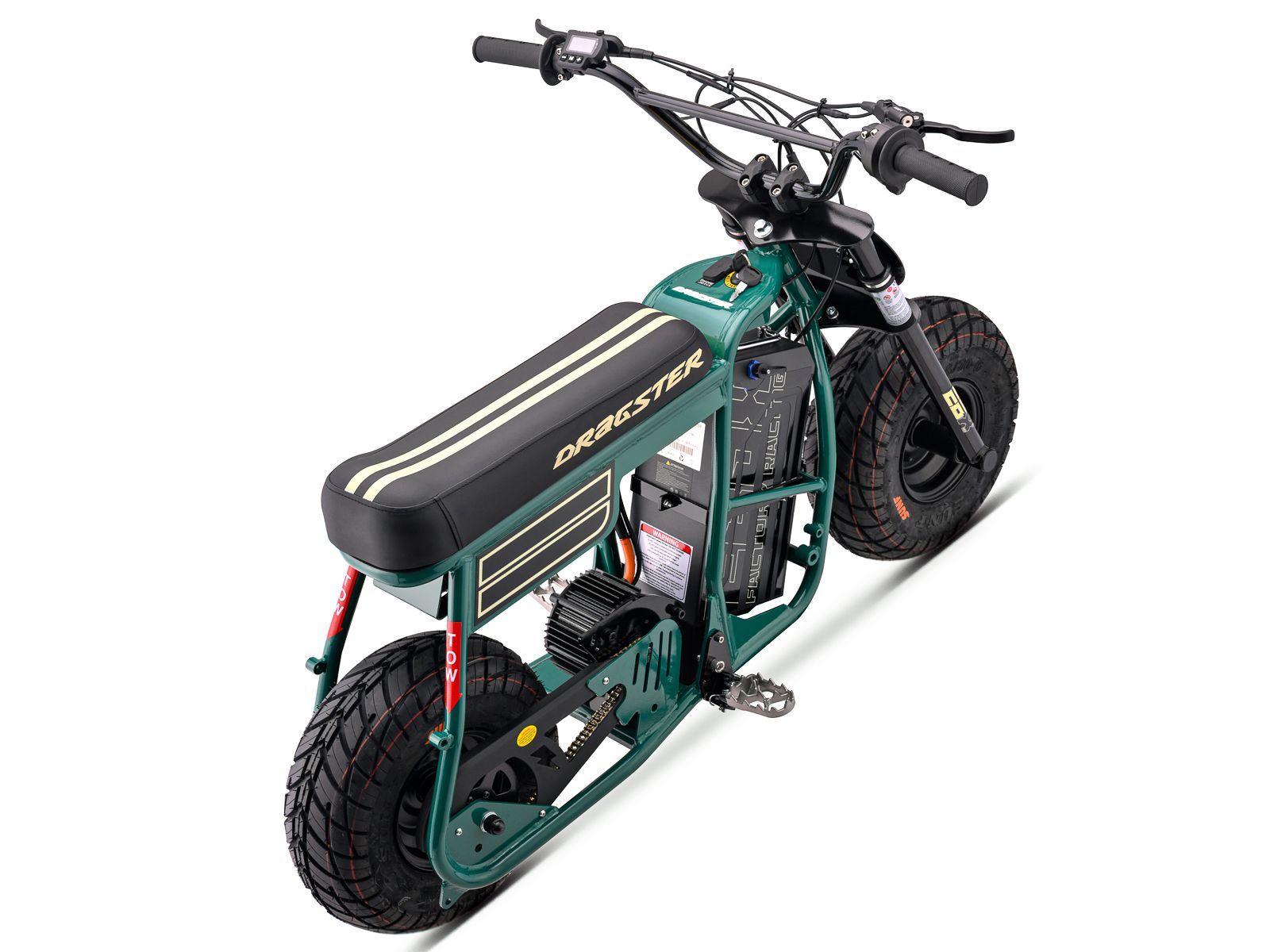

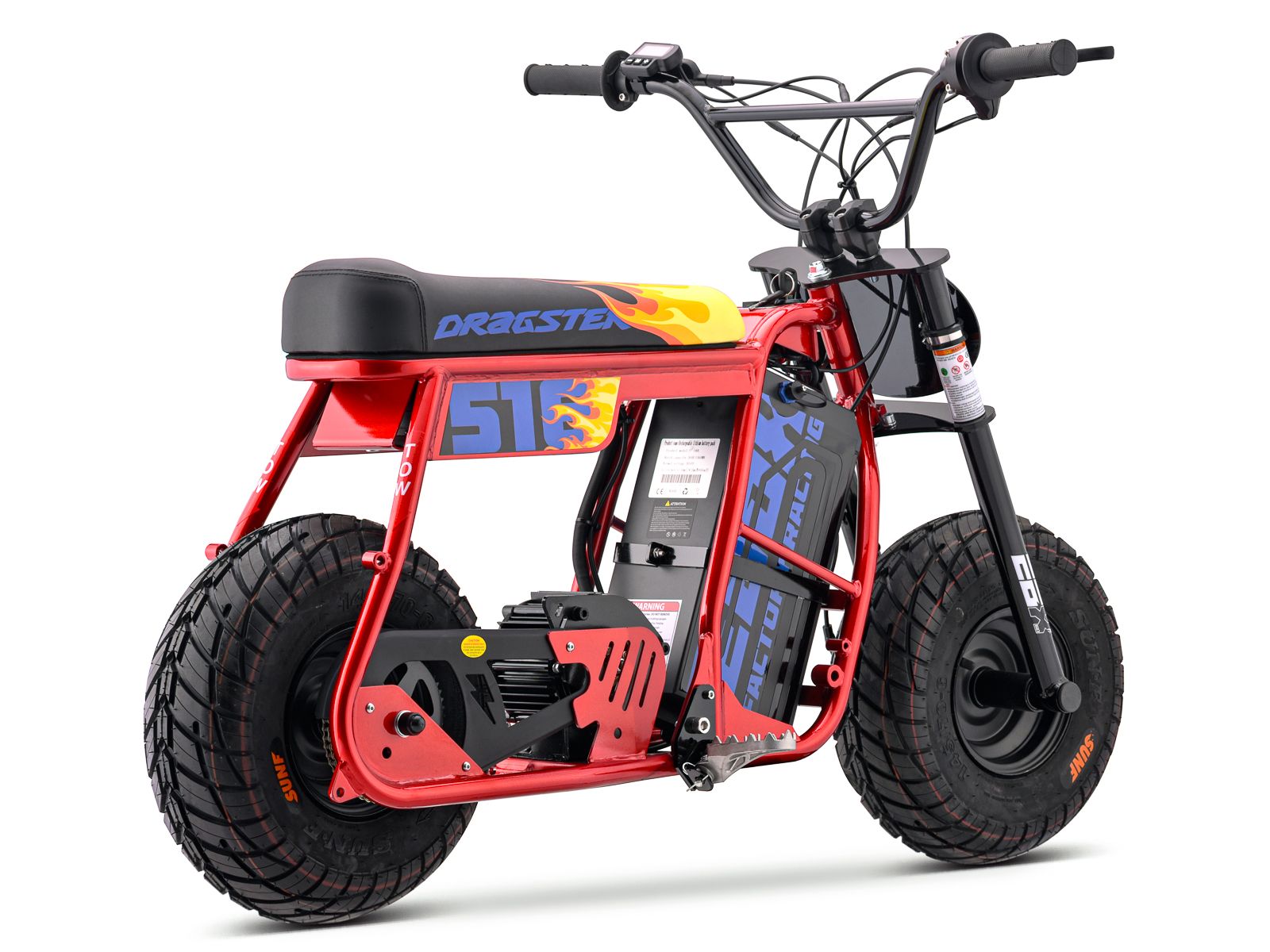

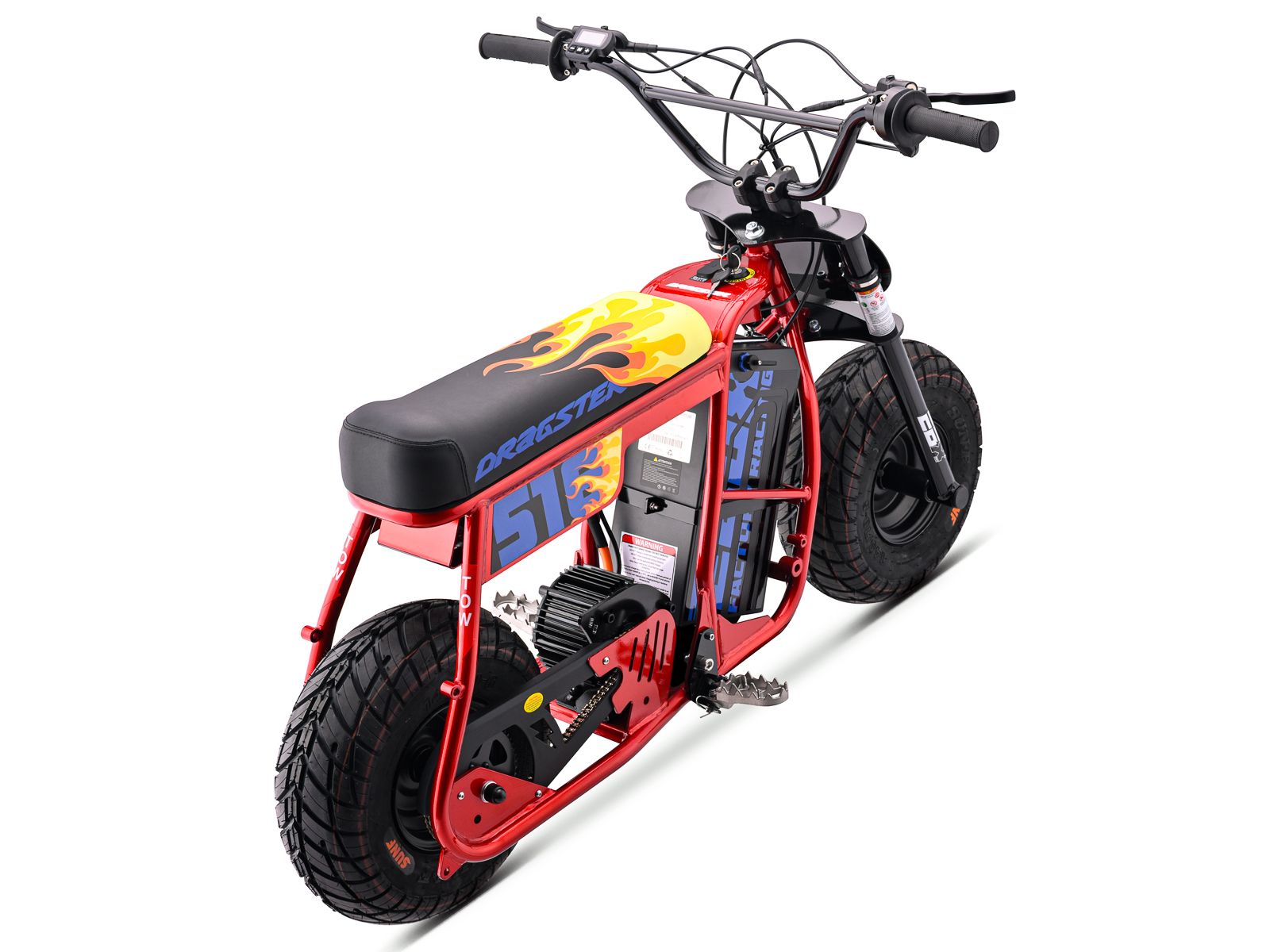

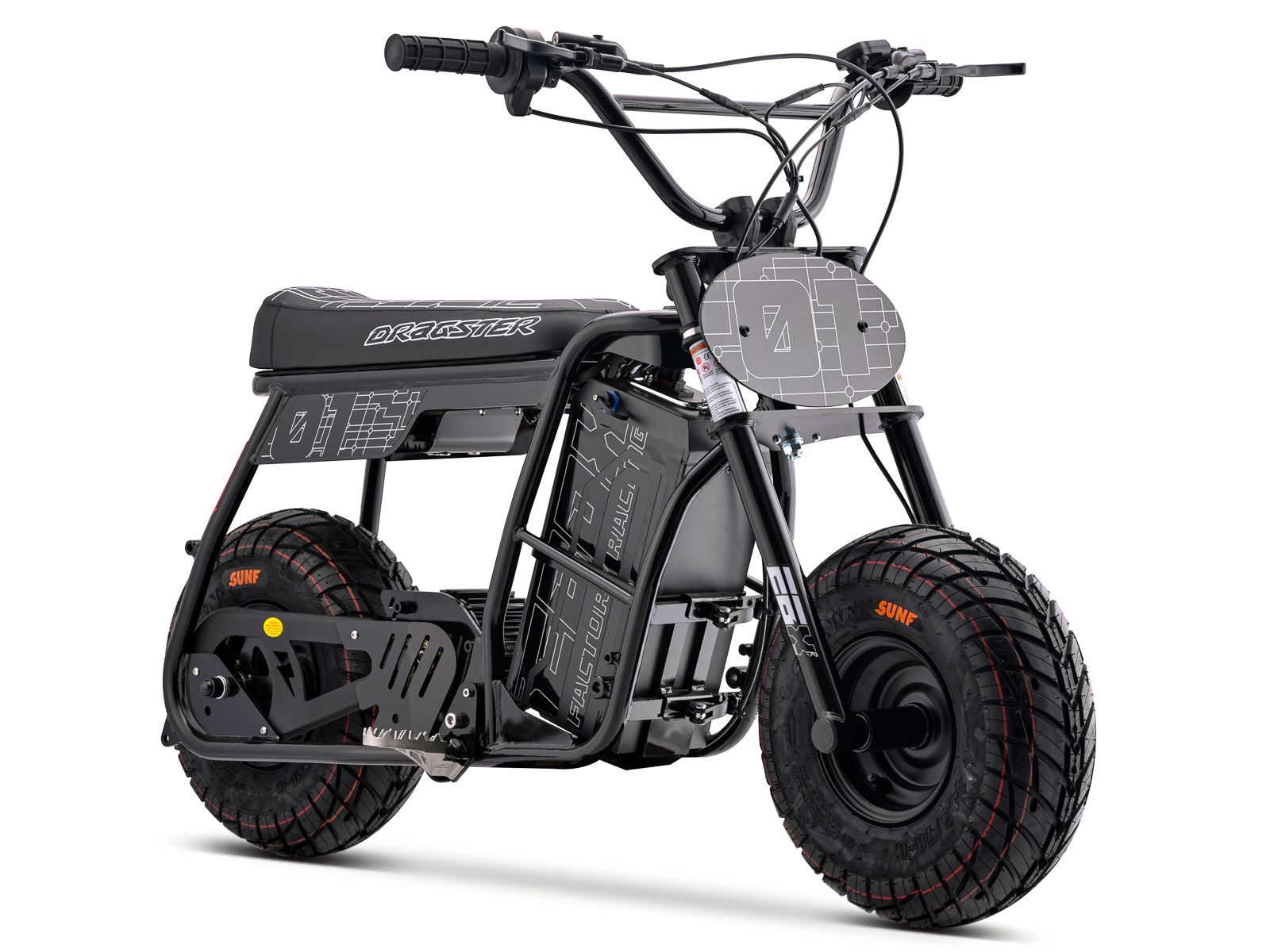

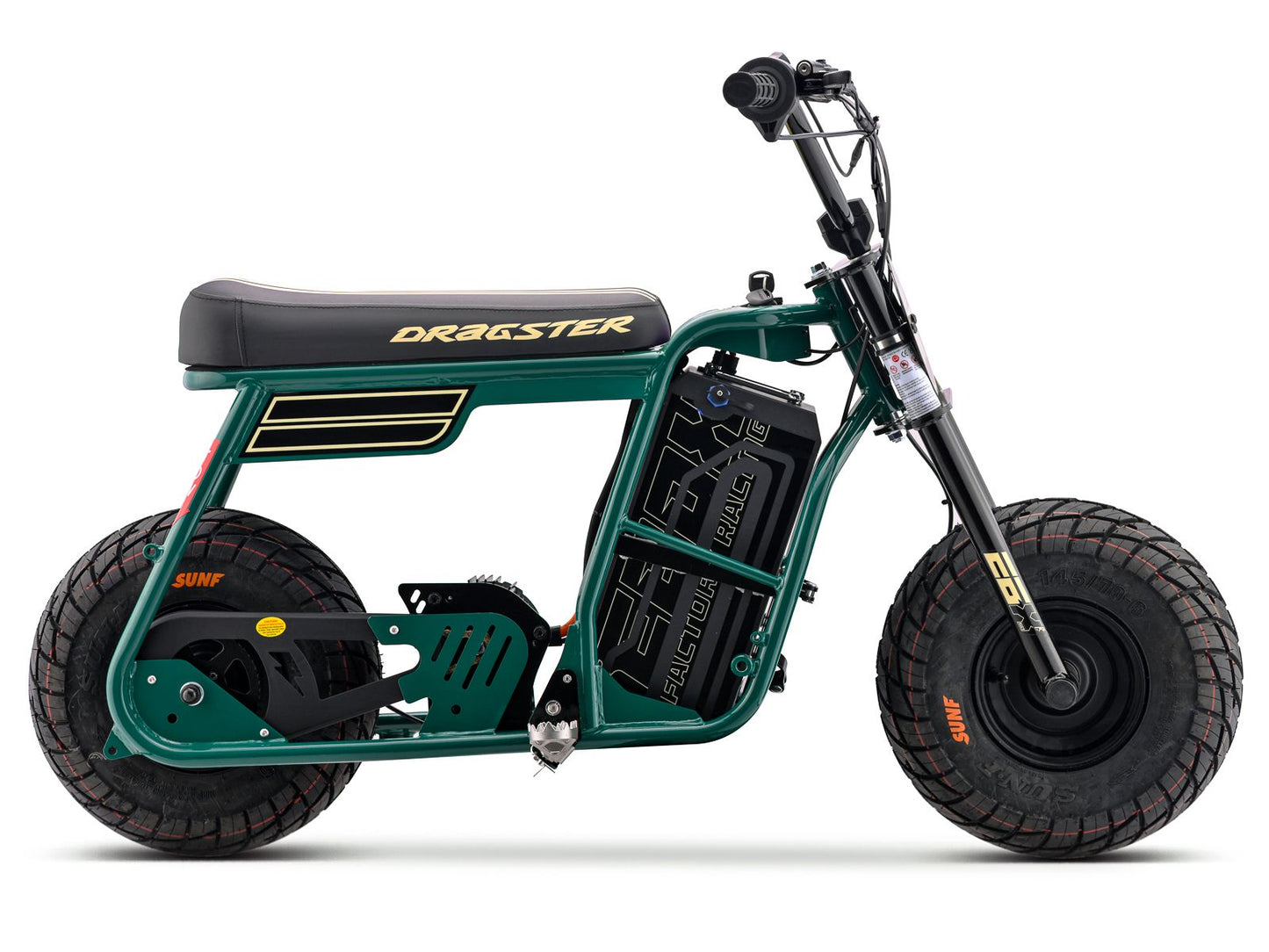

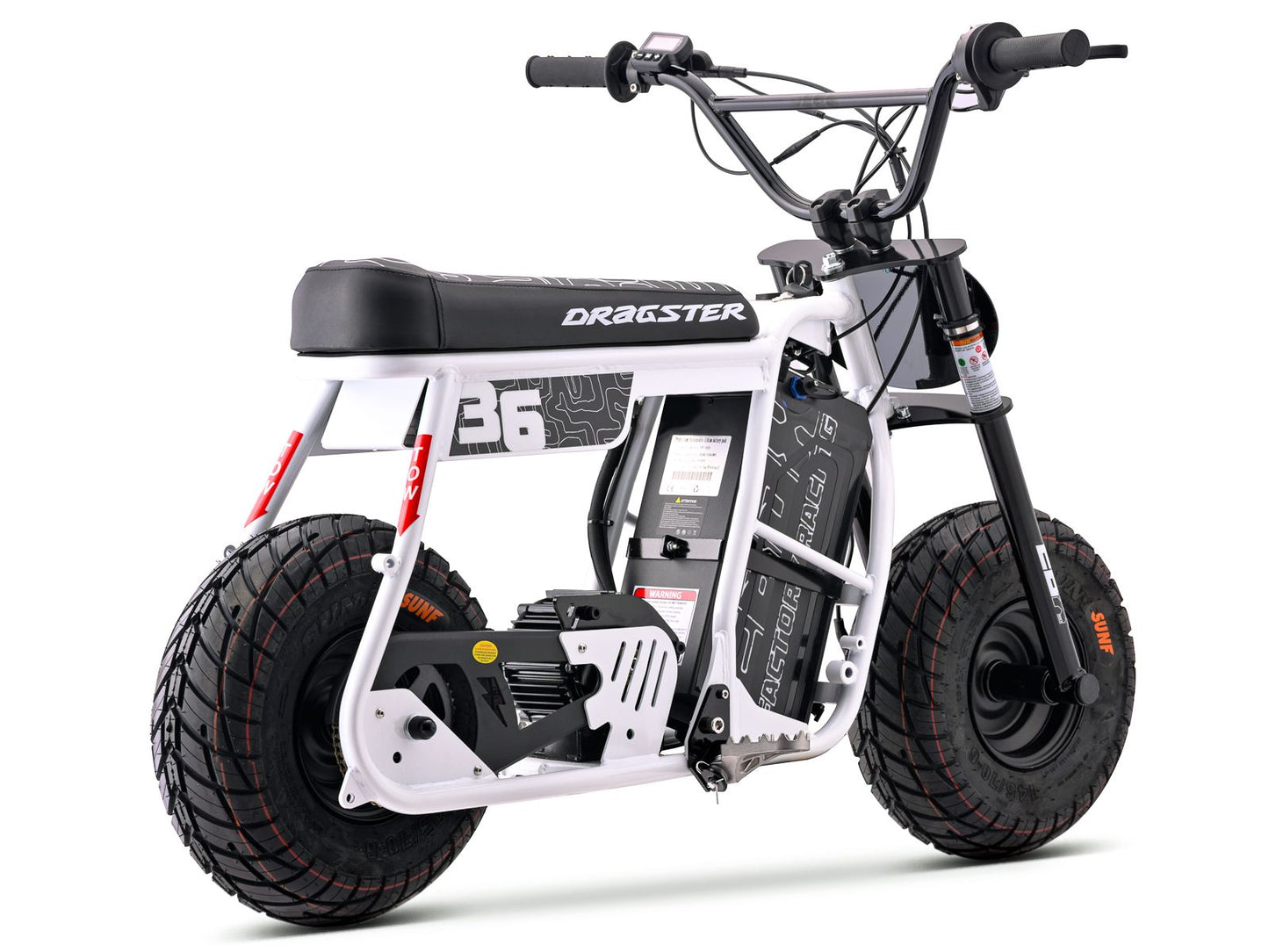

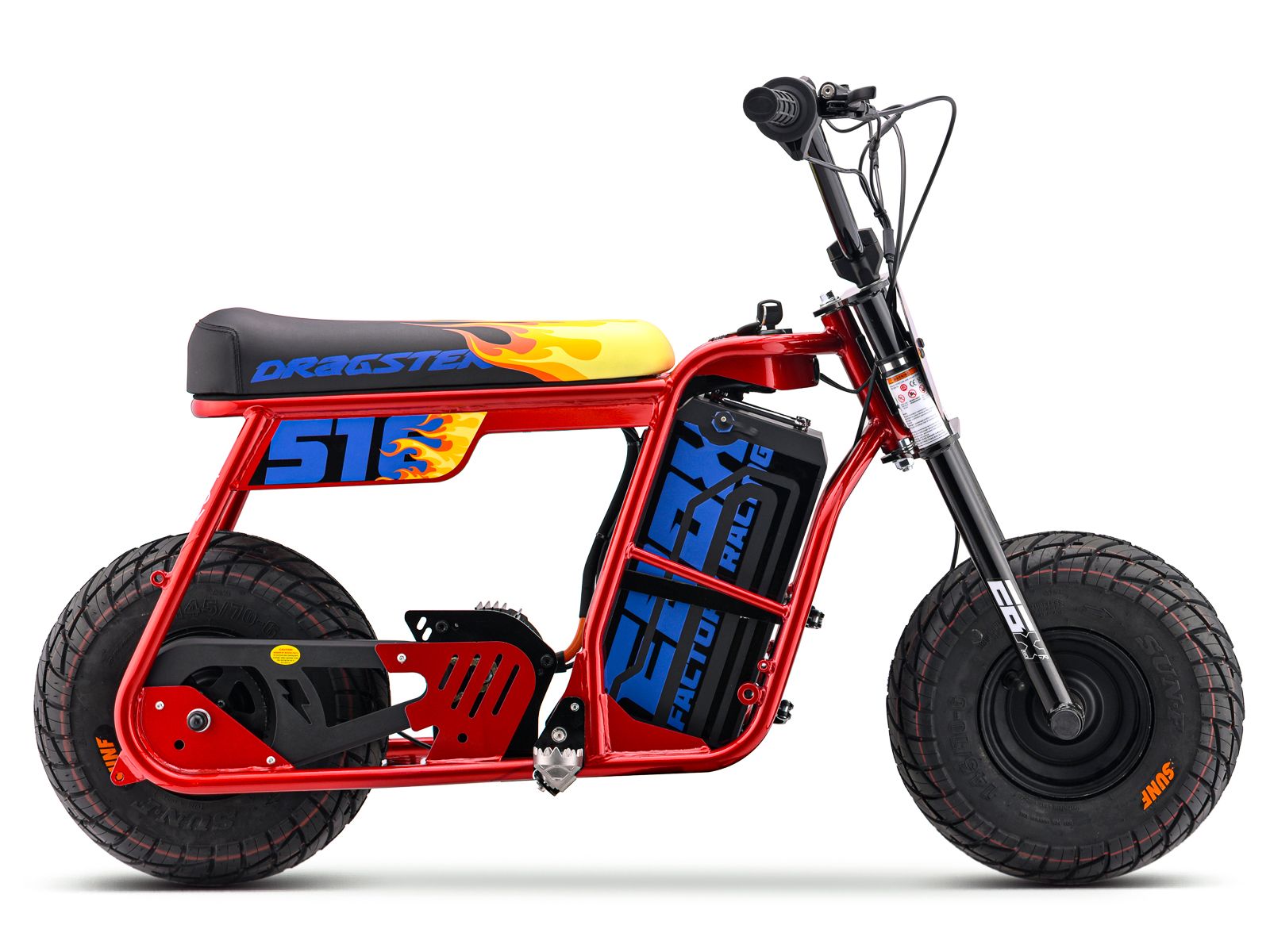

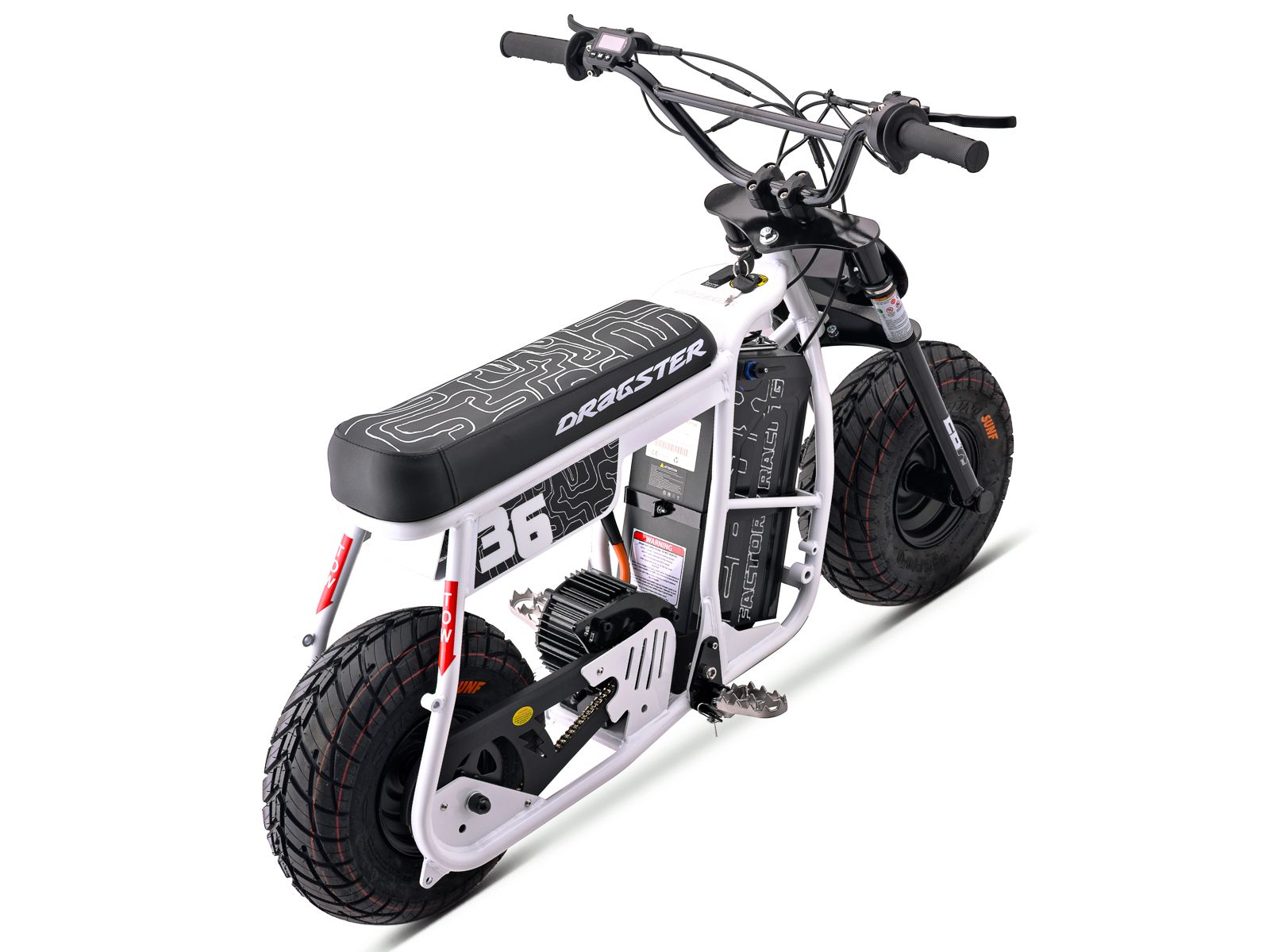

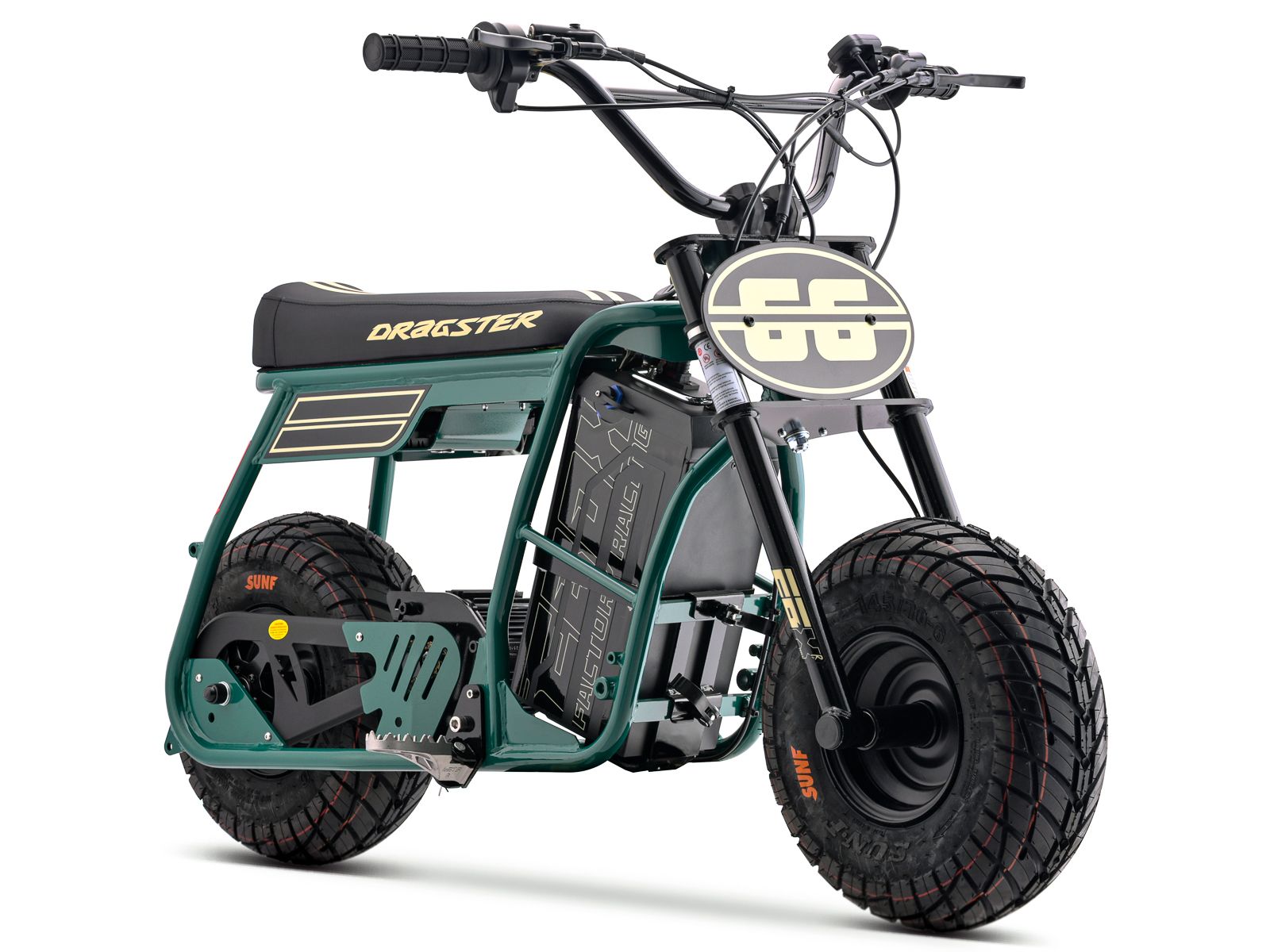

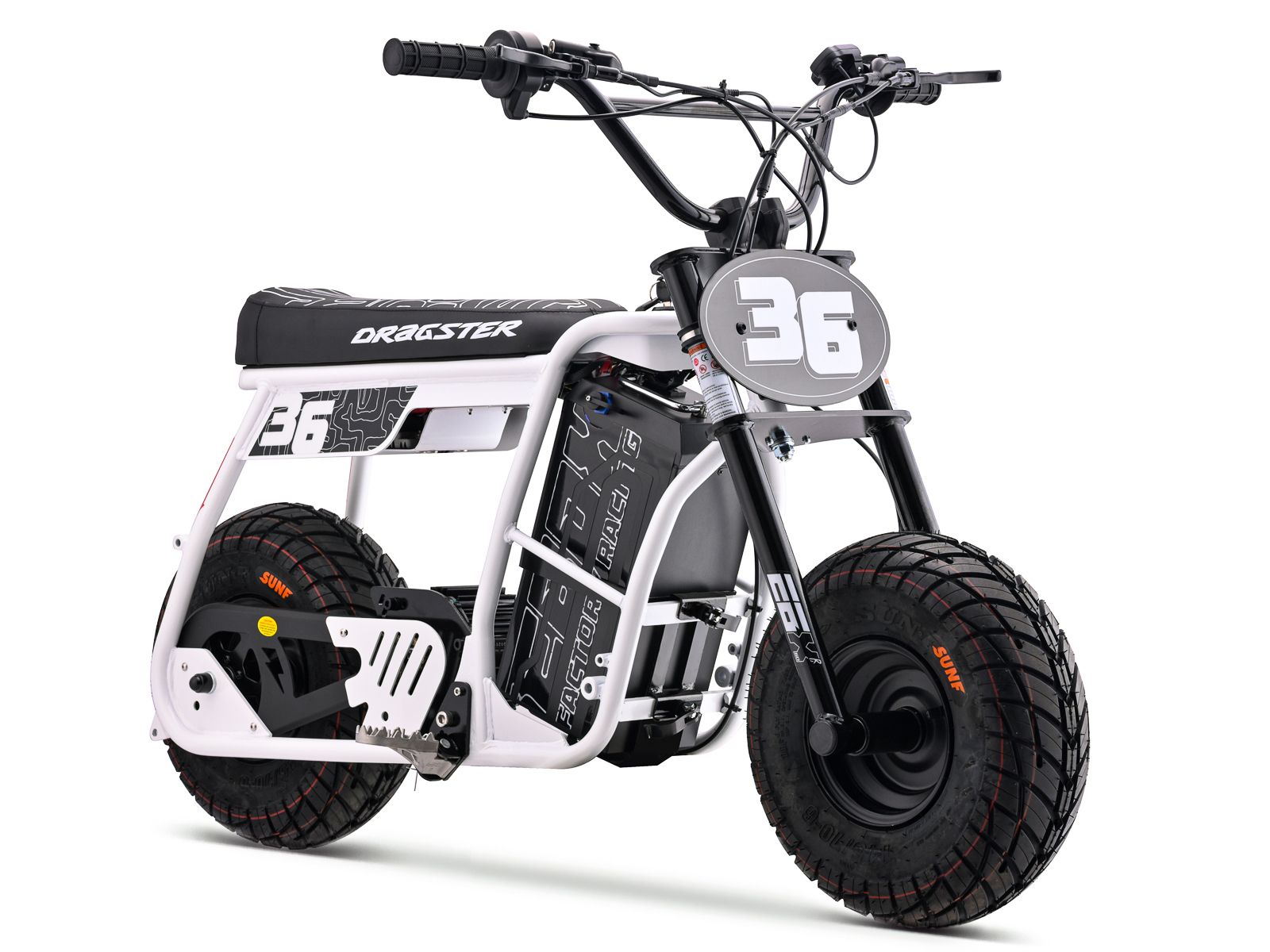

THE EBX Dragster is FINALLY HERE! In a world full of limp, slow, plastic failures, comes a truly HARDCORE electric minibike with more steeze than should be legal in such a miniature package. Featuring insane top speeds of up to 55 mph, the EBX is now delivered with a SERIOUS safety warning: Do Not Ride if You are Easily Frightened. Choose from 3 ballistic powertrains and multiple mind-blowing colourways. Fully re-engineered and reconsidered with a temperature protected PMSM encoder motor, 80 Amp Fardriver controller, bigger batteries, bigger brakes and 3-mode smart TFT colour display. Other exciting features are available such as bronze inverted suspension forks, an integrated LED headlight and luxury suede printed seats. The EBX range firmly cements the Dragster as the “Ultimate Wheelie Weapon” and King of the streets. .
SPECS
Frame type
Full duplex
Fork
Rigid High Tensile
Bar Risers
Cast alloy 36mm rise Ø22.2
Front wheel size
6"
Rear wheel size
6"
Front brake
Hyraulic Disc (Right lever) e-moto brakes
Front disc
Wavey rotor 160mm, 6 bolt 48mm BCD
Rear brake
Hyraulic Disc (Left lever) e-moto brakes
Rear disc
Wavey rotor 160mm, 6 bolt 48mm BCD
Front tyre
145/70-6 SUNF fast SM tyres
Rear tyre
145/70-6 SUNF fast SM tyres
Chain
219H 108L
Gearing
Front 10T, Rear 55T
Max load
100kg
Handlebar
High Tensile 2 Piece 29.5" x 7"
Seat
Dragster seat
Motor
60V EBX PMSM motor with temp feedback and encoder
Rated Power
4.5KW
Peak power
5.2KW (6.7hp)
Max RPM
8,500
Battery
60v 26Ah battery 18,600 cells with QS8 connector
Controller
80 Amp fardriver controller
Throttle
SURRON style full twist
Display
TFT odometer display with 3 speed modes and fault code analysis software
Connectors
Automotive connectors with sealed wiring harness
Charger
AC 100-240V, Output: 67.2V, 3A
TECH
Charge time
5-6 hours
Range
21-25 miles (35-40Km)
Top speed
45mph (72Km/h)
External adjustability
3 riding modes
Frame construction
High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible.
Waterproof
IP54
Other
USB A + C charging port
Wheelbase
882mm
Ground clearance
120mm
Seat height
585mm
Bar height
810mm
Warranty
EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information
